Qt 3D: Advanced Custom Material QML Example▲
This example demonstrates creating advanced custom materials.
Running the Example▲
To run the example from http://, open the Welcome mode and select the example from Examples. For more information, visit http://.
Description▲

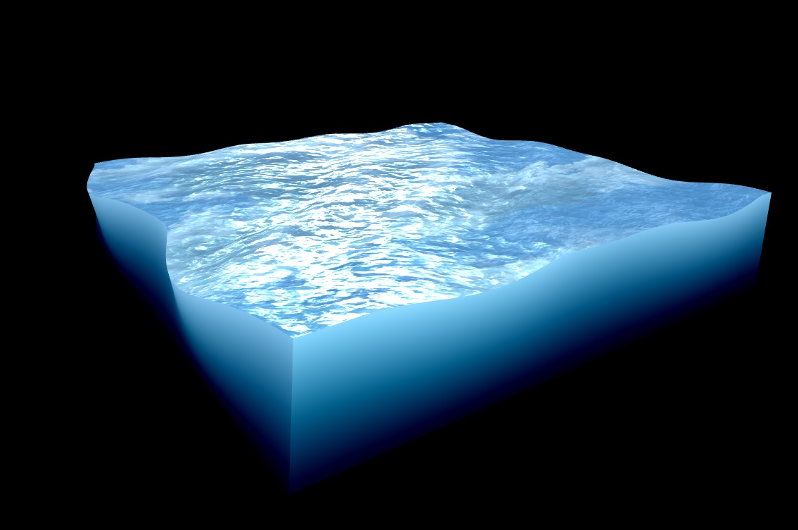

Advanced custom material example shows more complex shaders, and demonstrates controlling your shader properties with https:// user interface and Animation. Water is a 3D mesh, that is modeled and uv mapped inside Blender, and then brought into Scene 3D as an .obj file. Shader properties that user can control, are defined in WaterMaterial.
Controls▲
Texture scale slider▲
Multiplies texture coordinates inside the vertex shader. Controls the size of the textures on water surface.
Texture speed slider▲
Offsets values for texture coordinates which are animated in Water.qml and then passed to vertex shader. Creates the effect of textures scrolling over the surface.
Specularity▲
Multiplies specular texture values inside fragment shader. Makes the water reflective.
Distortion▲
Multiplies the offset in red and blue channels of wave texture in fragment shader. Makes the surface textures animate more randomly.
Normal amount▲
Multiplies the normal map values inside fragment shader. Controls the visibility of smaller waves on the water surface.
Wave speed▲
Modifies the frequency of the sine wave inside vertex shader. Controls the speed of the waves.
Wave height▲
Multiplies the vertex Y position inside vertex shader. Controls the height of the waves.
Mesh rotation▲
Rotates the water mesh in Water.qml.
List of Files▲
Files:
List of Files▲
-
advancedcustommaterial/SceneRoot.qml
-
advancedcustommaterial/Water.qml
-
advancedcustommaterial/WaterMaterial.qml
-
advancedcustommaterial/advancedcustommaterial.pro
-
advancedcustommaterial/main.cpp
-
advancedcustommaterial/main.qml
-
advancedcustommaterial/models.qrc
-
advancedcustommaterial/qml.qrc
-
advancedcustommaterial/shaders.qrc
-
advancedcustommaterial/shaders/es2/water.vert
-
advancedcustommaterial/shaders/gl3/water.vert
-
advancedcustommaterial/textures.qrc
List of Files▲
Images:
List of Files▲
-
advancedcustommaterial/textures/WaterDiffuse.jpg
-
advancedcustommaterial/textures/WaterNormal.jpg
-
advancedcustommaterial/textures/WaterSpecular.jpg
-
advancedcustommaterial/textures/Waterwave.jpg
-
advancedcustommaterial/textures/foam.jpg
-
advancedcustommaterial/textures/sky.jpg
